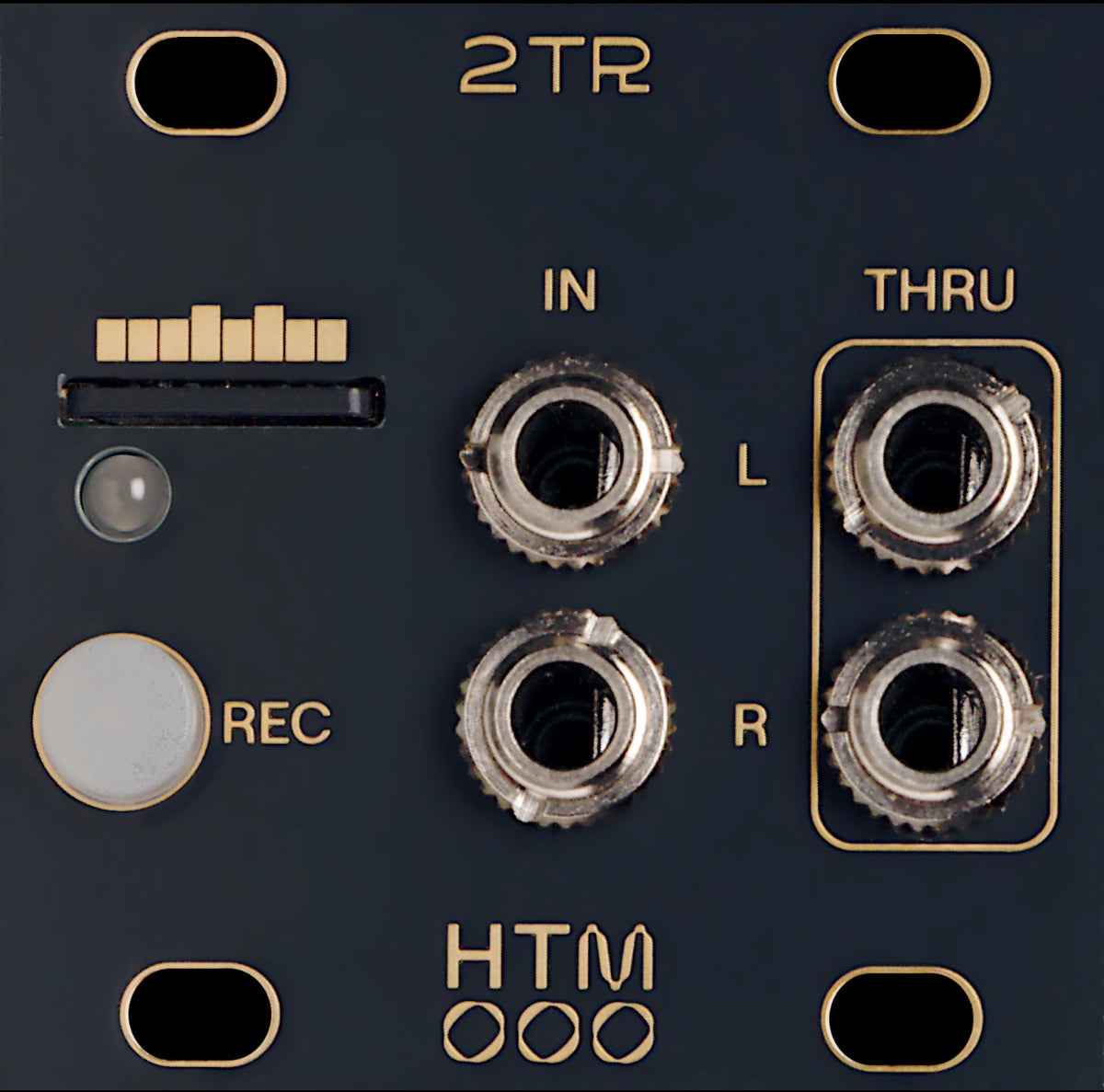

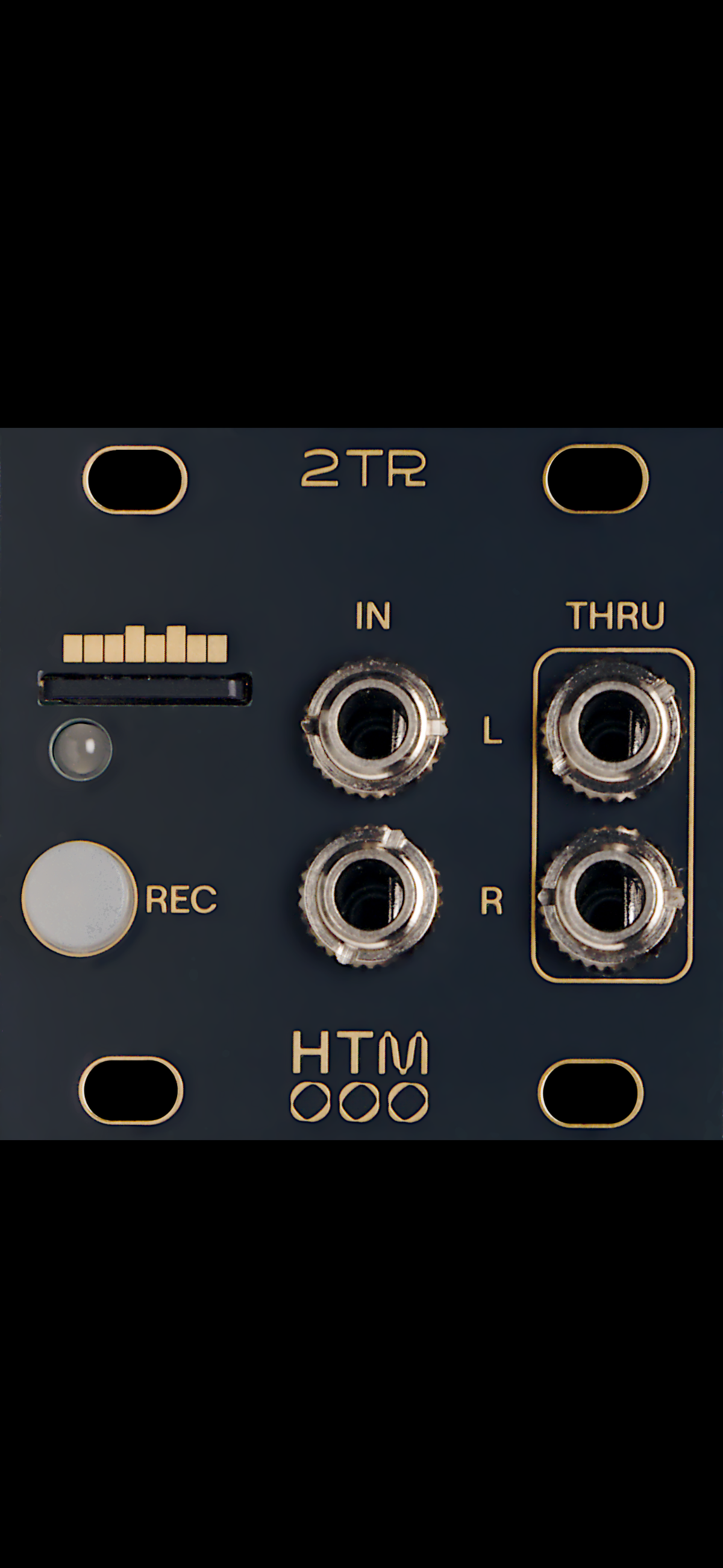

2TR Half-Time Modular (1U)

This is a preorder and will be available early november thank you

2TR is a stereo, high quality audio recorder.

• Recording quality up to 24 bit, 48kHz
• AC coupled inputs, full ±12V range
• Recording length only limited by uSD card memory (16GB included)
• Memory warning LED
• 3-pin connector on the back (for e.g. 6.35mm jacks)
• Trigger input solder points on the back (DIY)
• Skiff friendly

Technical Specifications:

• Equivalent Input Noise:
  Unweighted RMS: -109dBFS
  A-weighted RMS: -113dBFS
• Frequency Response 20 Hz – 20 kHz: ±0.4 dB
• THD (1kHz, 5Vpp): typ. 0.003%
• Crosstalk (1kHz, 5Vpp): typ. -90dB

• 8 HP

  32 mm deep

  Module is a 1U tile in Intellijel format

  Current Draw

  45 mA +12V

  15 mA -12V

  0 mA 5V
