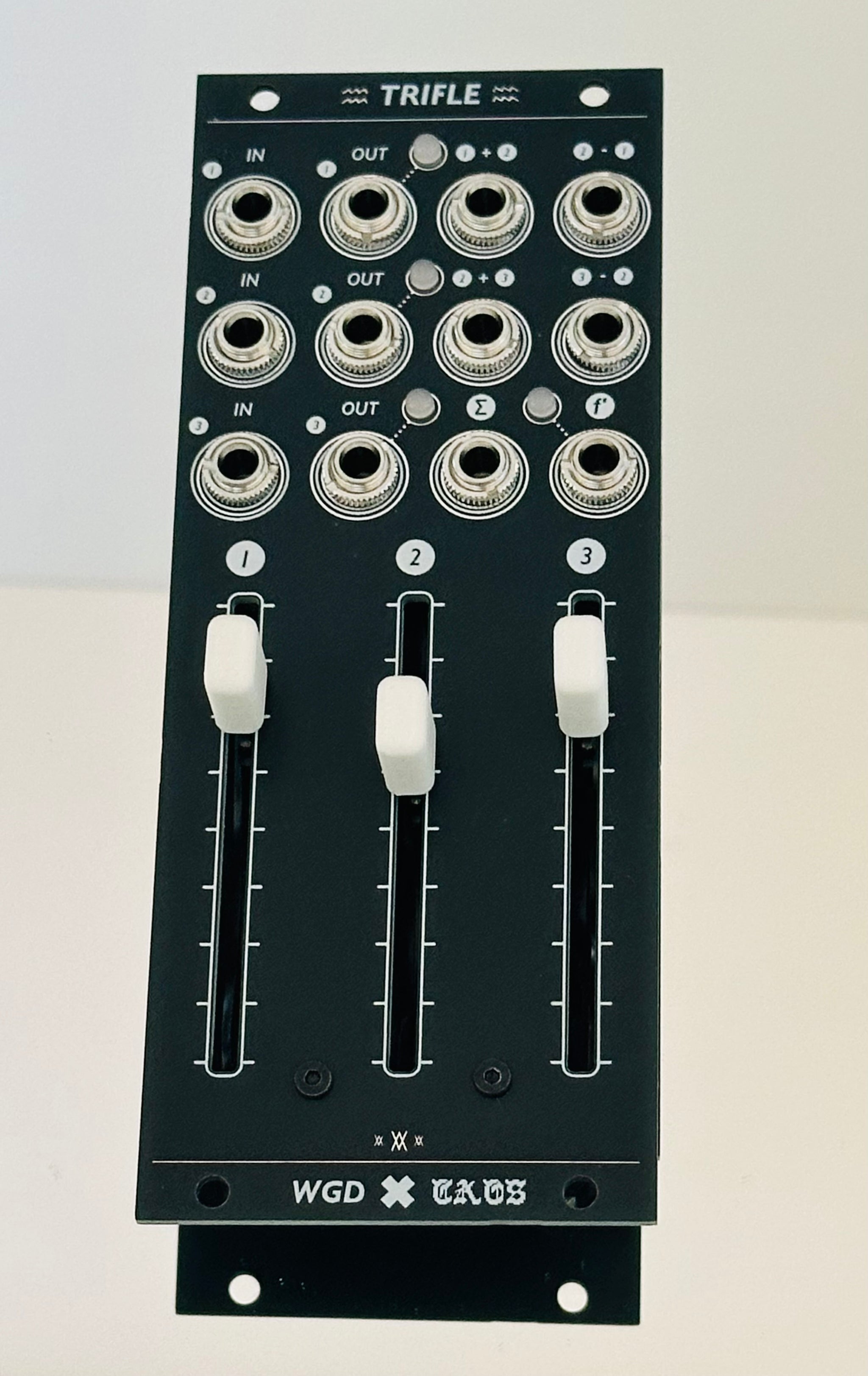

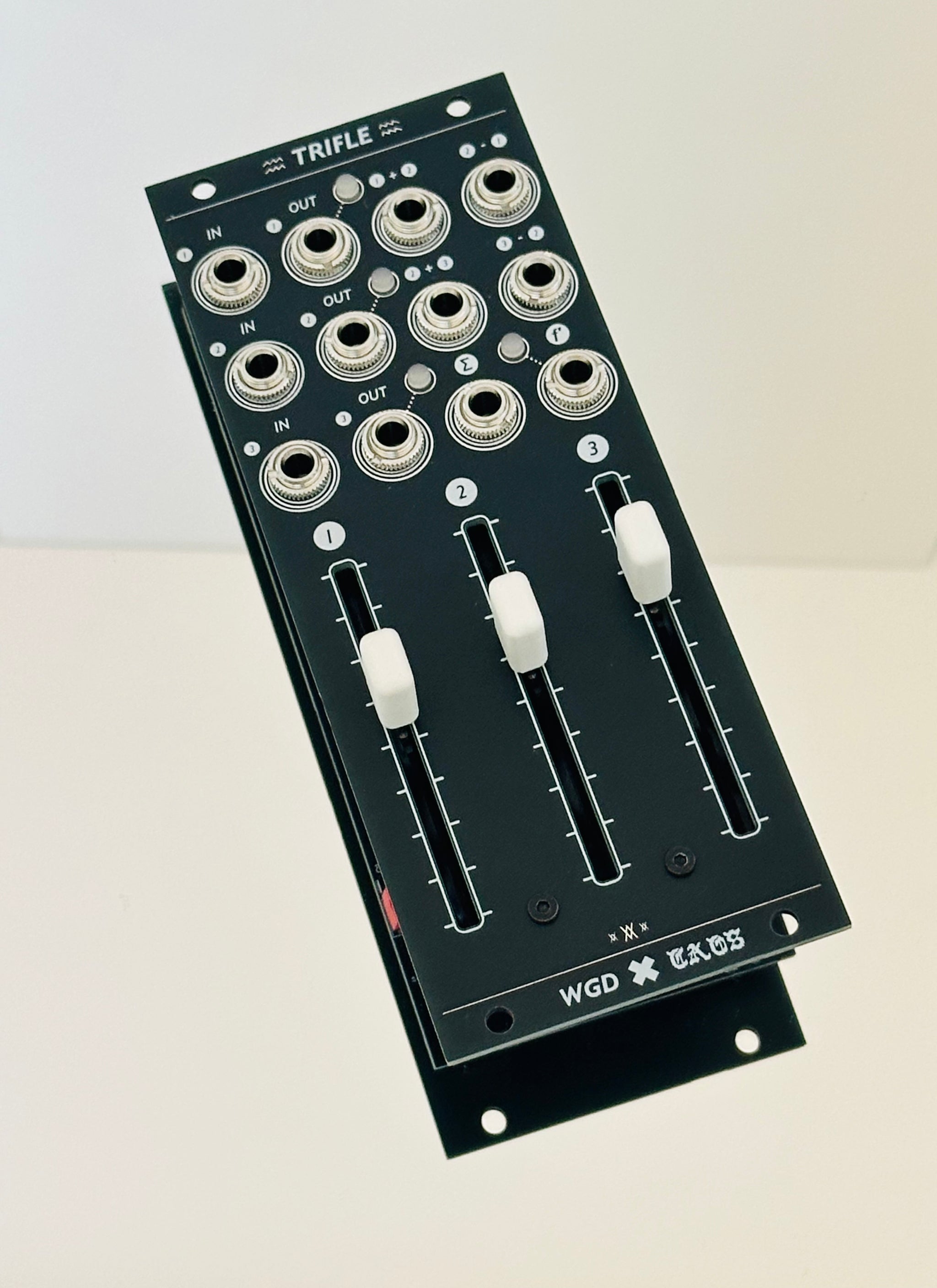

TRIFLE

Triple fader controller with additional logic

trifle is a compact CV utility developed in collaboration with Caos Modular.

At its core are three fader-based attenuverters, each configurable for unipolar or bipolar operation via jumpers on the back. Beyond the individual outputs, trifle generates a collection of useful derived signals including sums of channels 1+2, 2+3, and all three channels combined, as well as difference outputs (2−1 and 3−2). A dedicated "change" output provides the first derivative of the summed signal, making it useful for generating movement, triggers, and dynamic modulation.
